UHMWPE sheet characteristics :
Weldable/Bendable - suitable for fabrication
UV Resistant - Black only
Physiologically inert - approved for food applications (Natural only)
Electrical insulation - it is a good insulator
Weatherproof - it doesn't absorb water
Chemical resistance - resists corrosive chemicals (e.g. Sulphuric Acid, Caustic Soda)
Standard Size of UHMWPE Sheets( length width thickness):
UHMWPE Sheet 5000mm x 1300mm x 6~300mm
UHMWPE Sheet 3000mm x 1500mm x 6~300mm
UHMWPE Sheet 4700mm x 1200mm x 6~300mm
UHMWPE Sheet 4500mm x 2000mm x 6-400mm
UHMWPE Sheet 2000mm x 1000mm x 6-400mm

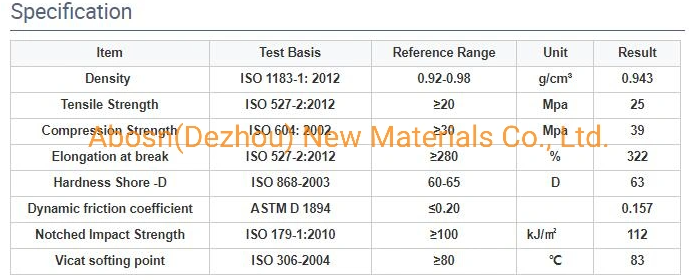

UHMWPE sheet property :
UHMWPE sheet advantages :
We can provide various UHMWPE sheet accoring to differenent requirement in different application.
Charactertistics:
* Excellent abrasion resistance
* Low coeeficient of friction
* No moisture absorption
* Corrosion resistant
* Excellent noise absorption
* Excellent impact strength
* Maintains key phsycal propery to -200ºC
UHMWPE sheet applications :
1. MINING INDUSTRY
REASONS:Good Impact Strength, High Wear Resistance and Low Friction Properties.
APPLICATIONS: Linings for Bunkers, Chutes and Railway Wagons, Conveyor Rollers, Scraper Blades, Impact Bars.
2. CHEMICAL INDUSTRY
REASONS: Excellent Chemical Resistance and Toughness, Easily Machined.
APPLICATIONS: Pump Housings, Seals, Gaskets, Stopcocks, Valves, Electroplating Barrels, Filter Press Plates.
3. FILTRATION INDUSTRY
REASONS: Excellent Chemical Resistance, Low Friction, High Wear
Resistance.
APPLICATIONS: Filter Plates, Vacuum Seal Strips, Support Rollers, Belt Slide Plates, Cloth
Guides, Belt Guide Rollers, Belt and Cloth Tensioners.
4. PAPER INDUSTRY
REASONS: Low Coefficient of Friction, High Wear Resistance.
APPLICATIONS: Suction Box Covers and Bars, Foils, Guide Blades, Slide Deckles, Rollers.
5. PORT, DOCK INSTALLATIONS, SHIPBUILDING
REASONS:Good Impact Strengths, Low Friction, UV. Resistance.
APPLICATIONS:Dock Fenders, Buffer Strips, Cable Guides, Weir Plates, Lock Gates.
6. BREWERY, BOTTLING AND CANNING
REASONS: High Wear Resistance, Low Friction, Good Impact Strengths, Food Approved.
APPLICATIONS: Wear Strips, Chain Guides, Starwheels, Can Guides, Chain Tensioners, Dead Plates, Feed worms, Bearings, Rollers.
7. FOOD AND PREPARATION
REASONS:F.D.A. Approval, Non - Stick, Good Impact Strengths.
APPLICATIONS: Food Preparation Tables, Cutting Boards, Stirring Paddles, Mincer
Rammers, Rolling Pins, Knife Holders, Butchers Blocks.
