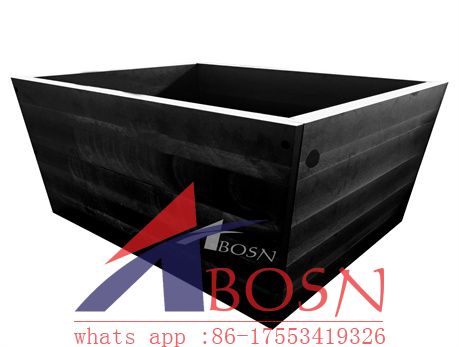

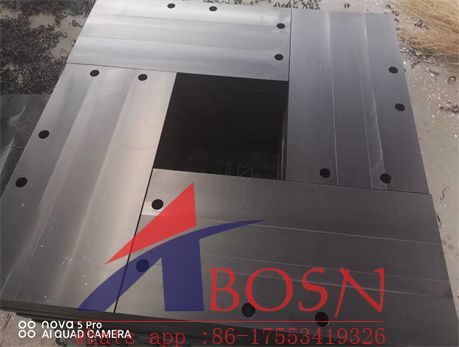

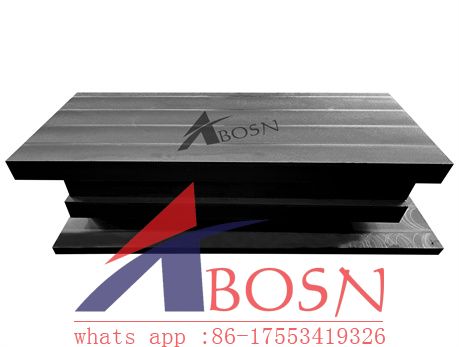

Boron-containing UHMWPE neutron shielding boards radiation protection polyethylene sheet

5% Borated Polyethylene is manufactured to meet all applicable applications for industrial use, shielding applications,

medical applications (with regards to cancer treatment), vaults, and doors for linear particle accelerators.

Borated Polyethylene is effective shielding for support in all areas of security, i.e.,

seaports, airports, border protection and other applications requiring attenuation of thermal neutrons.

The important factor is the Hydrogen Level in the PE. Our 2" & 3" thick have higher levels than the 1".



5%Boron by weight to shield neutrons , are boron loaded PE UHMWPE grades . The high hydrogen content of PE UHMWP makes it

very suitable for slowing down fast neutrons to lower energy thermal slow neutrons , which are then absorbed by the

added boron compound . Where as  UHMWPE are suitable for neutron sheielding , it is often preferred because of its better deformation

 behaviour at high temperatures and its superior impact strength and wear resistance .


Radiation shielding boron loaded uhmwpe sheets was specially designed for nuclear shielding applications and is used in a variety of applications including high intensity X-rays ,

cancer treatment facilities , nuclear submarines and nuclear power plants .



Specification  :

Boron-containing UHMWPE neutron shielding boards radiation protection polyethylene sheet

Approximate Weight: (lbs/kg) 174 lbs | 78.925 kg

Sheet Size:(in/mm) 48″ x 96″ | 1219mm x 2438mm

Standard Sheet Sizes Tolerances Information

Gauges ± 5%, both width and length, plus only at room temperature.


Borated PE Products:

1.5% Boron ,  3% Boron  ,5% Boron -10% Boron , 15% boron, 20% boron, 25% boron, 30% boron


Size & thickness

Thickness;6-300mm

Normal Standard Size:2000*1000*6-300mm

3000*1500*6-300mm

4700-1200*6-300mm

5000*1300*6-300mm

3050*1220*6-300mm

Any small size need ue to cut,we can satisfy your special need


Advantage of borated polyethylene sheet :


1. Non-Toxic and smell

2. Corrosion resistant

3. Abrasion and impact resistant

4. Self-lubricating

5. UV Resistant/ultraviolet-resistance sheet

6. Can be used under Extreamly low Temperature

7. High Tensile Strength

8. Low Viscosity

9. radiation shielding


Applications :

Medical vaults and doors

Hot cells

Nuclear storage and transfport containers

Nuclear waste management

Particle accelerators

Nuclear detection systems
