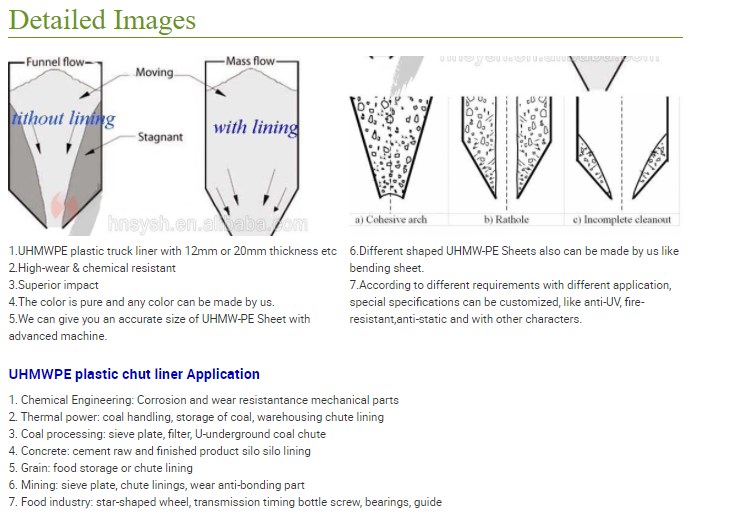

1. Our liner system has the lowest coefficient of friction thereby promoting flow for bulk materials.
2. Drop in liners reduce the time required for installation. Less down time means minmal loss in production for the
change-over.
3. Even very large hoppers can utilize a lining system for various sections of the hopper.

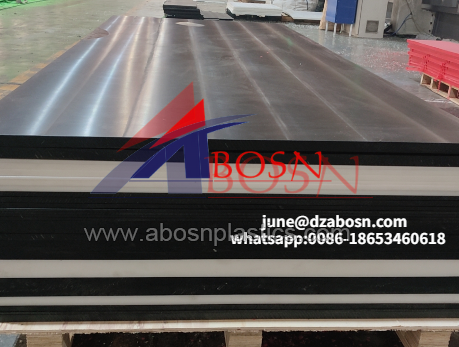

Our UHMWPE board standard sizes:
Thickness: 6-300mm
Width: max. 2000mm
Color: white, black, yellow, depend on the clients’ requirements
Normal standard size based on drawing made by clients
Utilizing polymer fusion butt-welding, the system integrates pre-engineering technology to build a ready-to-install
kit. A complete assembly can be 'dropped' into an existing or new hopper with ease. Another valuable benefit of using
a Lining System, is that minimal mechanical fasteners are required as the existing hopper structure provides support for the
liner. In some circumstance there are no fasteners required, further minimizing installation time!
Unify Standard: As the unique one puts unify standard into product process in China, and high quality products released in market,
CPPIA has officially appointed our company to set the PE Chinese Standard based on our production.

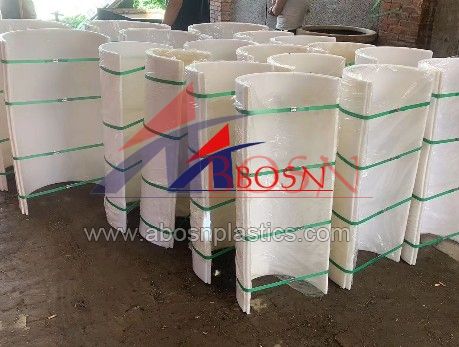

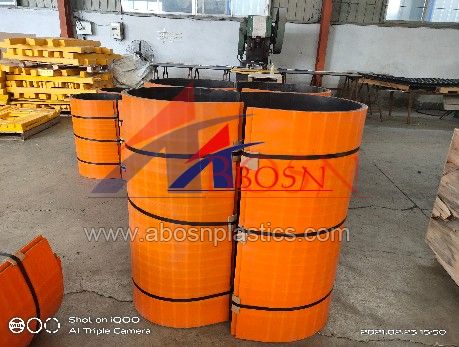

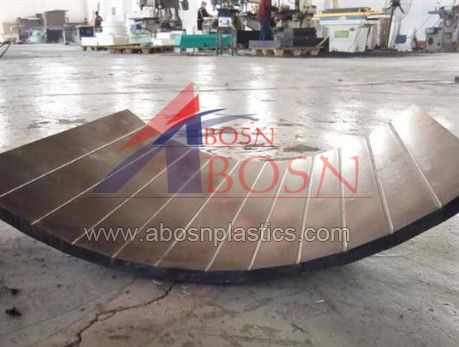

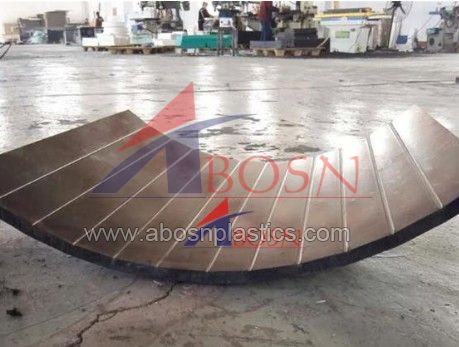

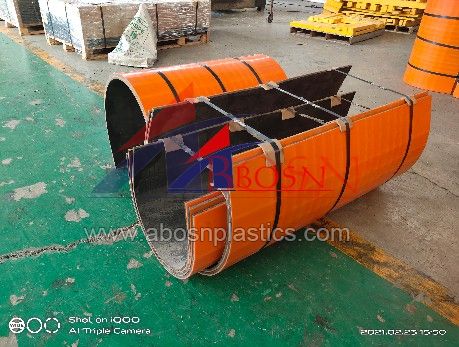

Curved uhmwpe liner and semi circle are popular , standard thickness 8-12 mm and any color is available with us !
We do all the process for client , to save client time and when they receive the liner can install easily with they truck or tipper body .
And if any need for the bolts and nuts , we can also supply !
UHMW PE Polyethylene Liner Features:
Incredible high abrasion resistance and wear resistance;
Excellent impact resistance at low temperature;
Good self-lubricating performance, non-adherent surface;
Unbreakable, good resilience, Super resistance of aging
Odorless, tasteless, and nontoxic;
Extremely low moisture absorption;
Very low coefficient of friction;
Highly resistant to corrosive chemicals except oxidizing acids.
